HAILO G60
Order number:
9204015140
/ Reference number: 9459507

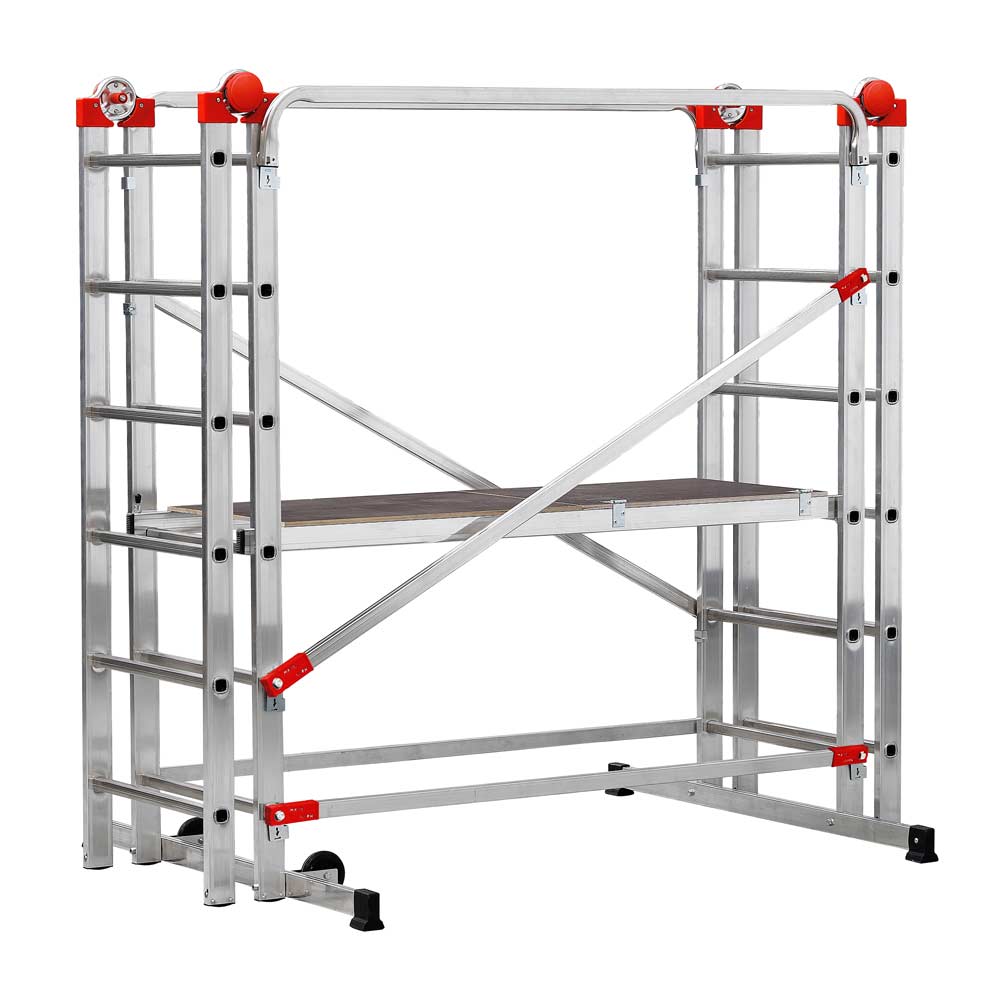

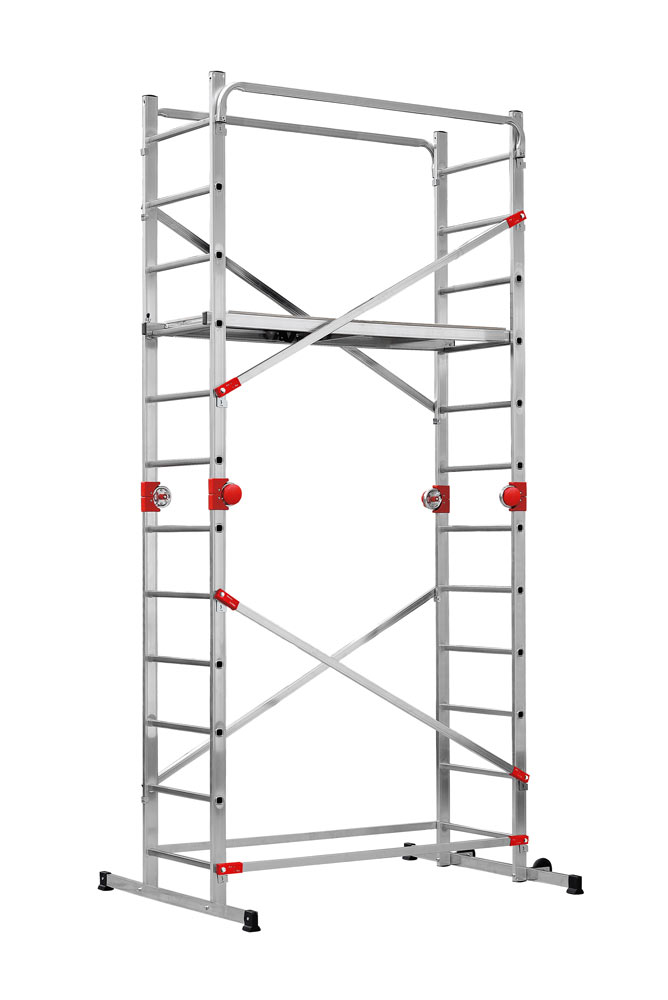

The aluminum multipurpose scaffold with ‘Fast & Lock‘ closure.
Product information
- Scaffold and ladder in one

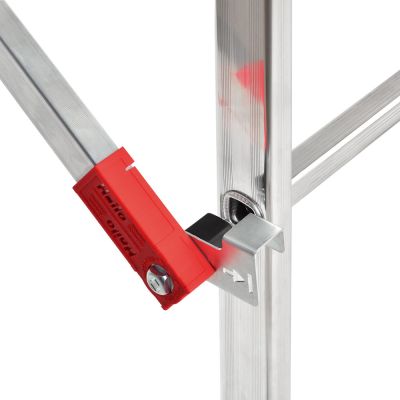

- Easy to handle and fitted with ‘Fast & Lock’ closure for fast, easy assembly

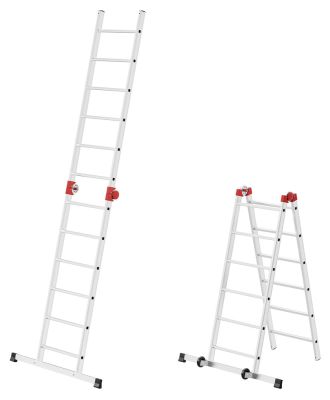

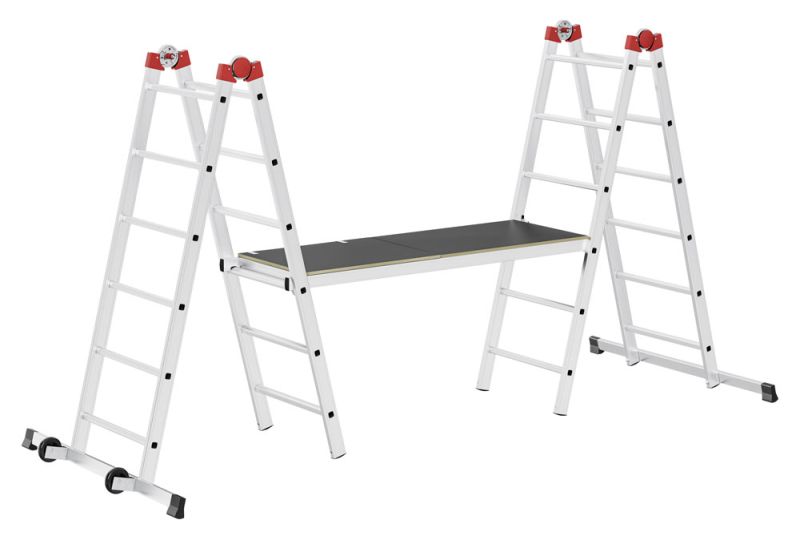

- Multipurpose: for use as a lean-to ladder and double ladder, as a small scaffolding unit for indoors and outdoors or as a platform for working

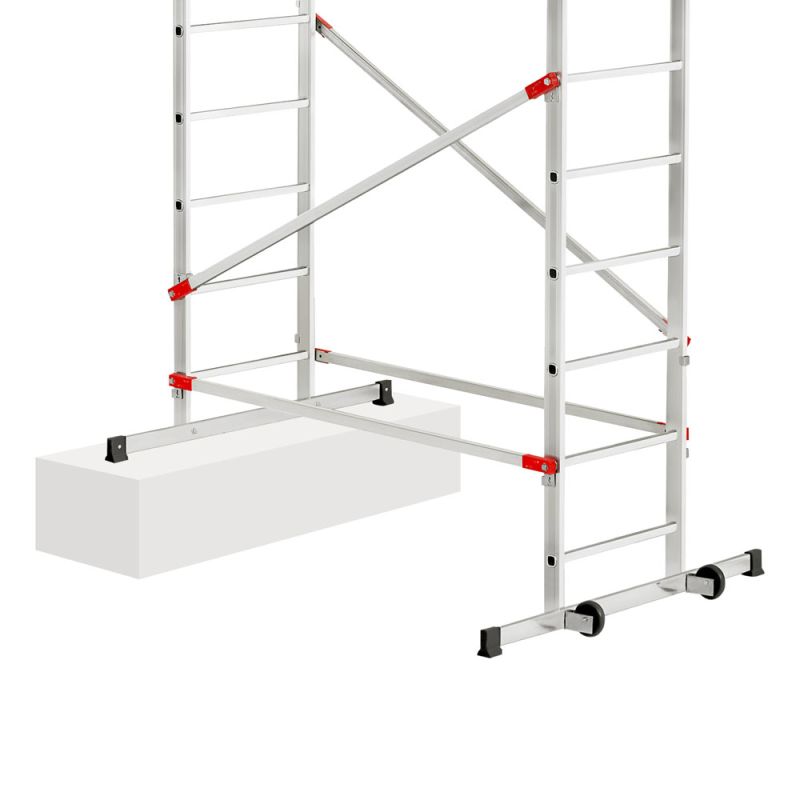

- Step adjustment option
- 2 ladder sections of 12 rungs (1.1 × 1.1 in) with safety joints for locking/releasing the ladder sections
- Platform dimensions: 53.5 × 19.7 in
- Working platform with access hatch (24 × 18.1 in)
- 2 crosspieces incl. 2 transport castors
- 4 guard rails and 4 aluminum diagonal struts
- Upright dimensions: 2.7 × 0.9 in
- Rung spacing: 10.2 in
- Max. load capacity 330 lbs per m2
Warranty
We provide a 5-year warranty (for private use) for this access equipment according to our current warranty conditions.
Technical specifications
| Level of equipment: |
|
|---|---|
| Can be used as lean-to ladder or free-standing ladder: | |
| Can be used in a free-standing position: | |
| Working platform: | |
| Can be used as lean-to ladder: | |
| Ladder sections can also be used on their own: | |
| Step adjustment: | |
| Movable: | |
| Max. working height: | 170.5 inches |
| Platform height: | 91.7 inch |
| Dimensions required for setting up (WxD) : | 66.9 x 47.2 inches |
| Dimensions of packaging (HxWxD): | 65.3 x 23.6 x 13.8 inches |
| Step adjustment max.: | 9.4 - 11 inches |
| Material: | Aluminium / wood / plastic |
| Weight: | 68.3 lbs |
| Load capacity: | 330 lbs per m² |
